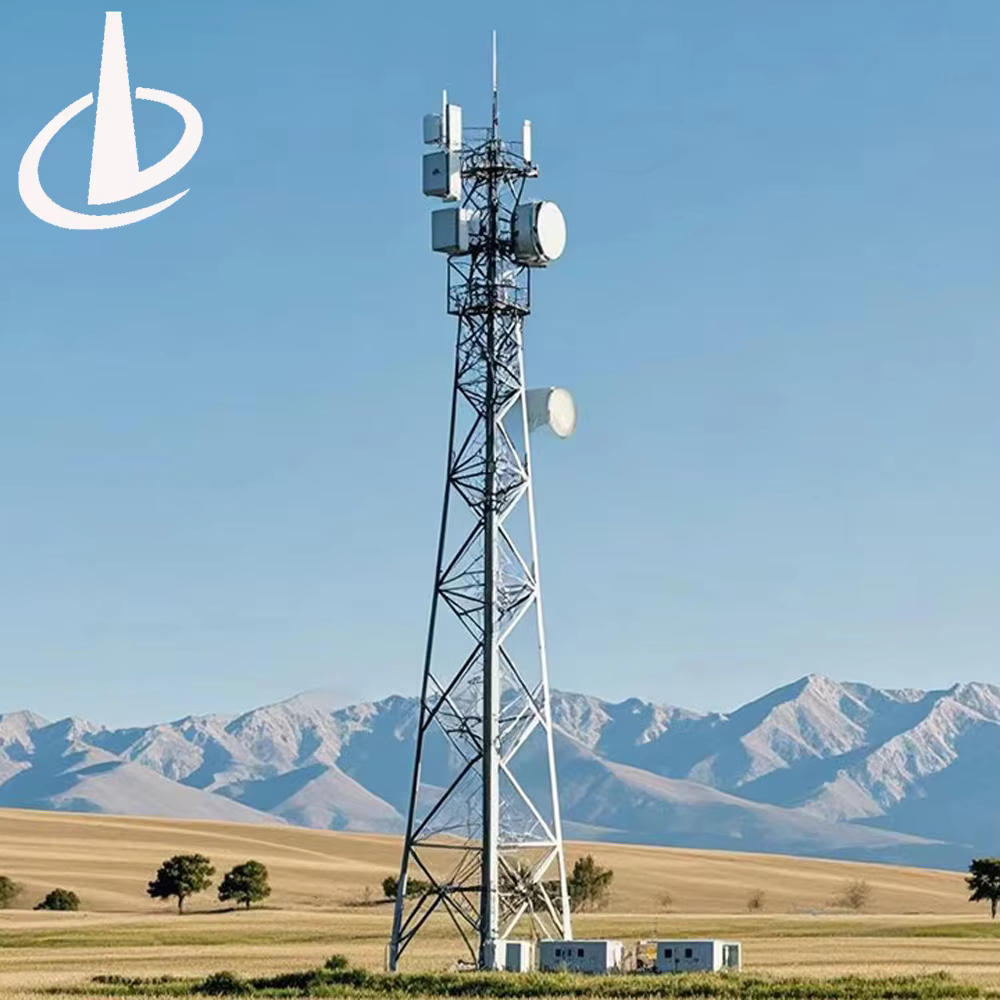

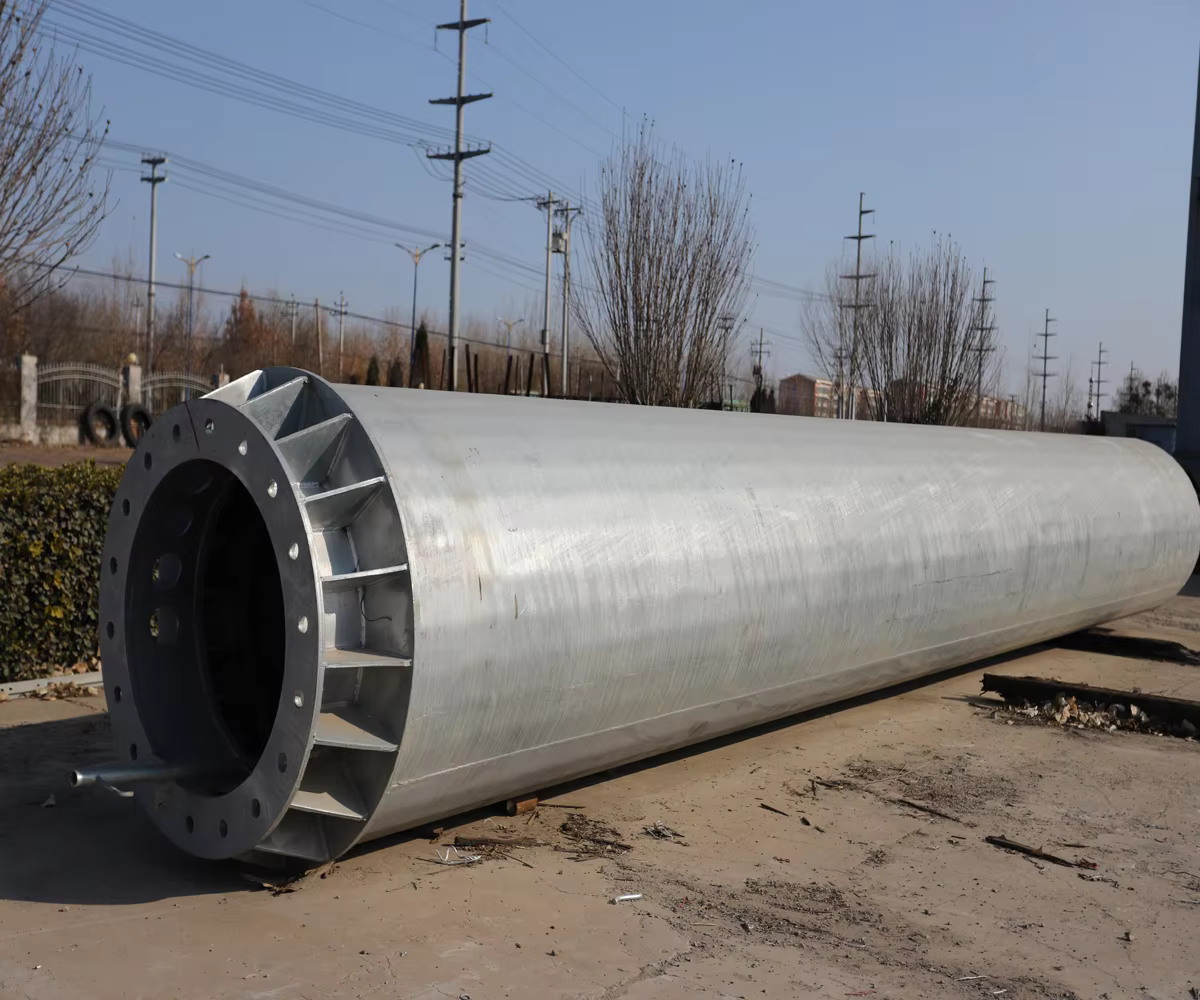

The Communication Tower is composed of steel components such as tower body, platform, lightning rod, ladder and antenna support, and is treated with hot-dip galvanized anti corrosive treatment. It is mainly used for the transmission and transmission of microwave, ultra-short wave and wireless network signals.
Advantages of the single pipe communication tower1.attractive appearance
2.small footprint
3.fast construction speed
4.customizable height
5.low maintenance cost
6.small wind load shape coefficient
7. good mechanical performance.
Description |
Detailed Specification and Major design Parameters |
Design Code |
ANSI/TIA222G, European Standard and others |
Design Loading |
1. Antenna load area as per specified by Clients worldwide.
2. Wind speed as per requested by the clients.
3. Deflection & Twist Angle, Exposure category, Topographic category as per specified by clients. |
Steel Grade |
1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60
2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR
3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR |
Welding Method |
CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) |
Welding Standard |
AWS D1.1 |

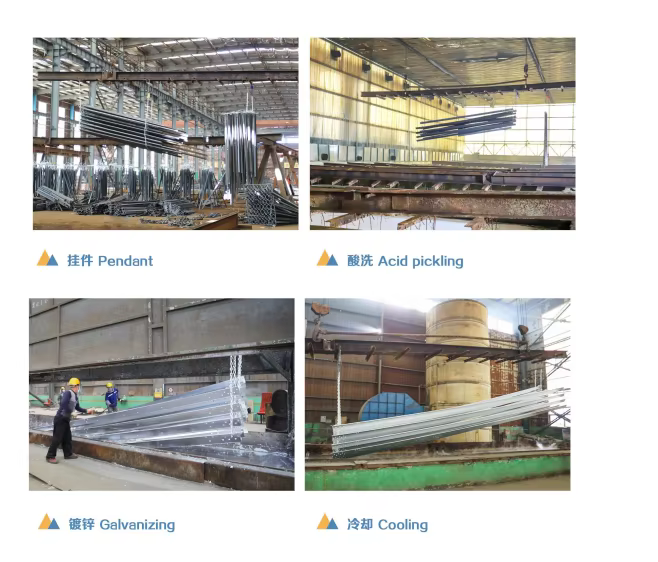

Surface Treatment |
1. Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123
2.Can be powder coated or painted according to clients' request |
Once Forming |
12m Once forming without joint |
Factory test |
Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test |
Joint |

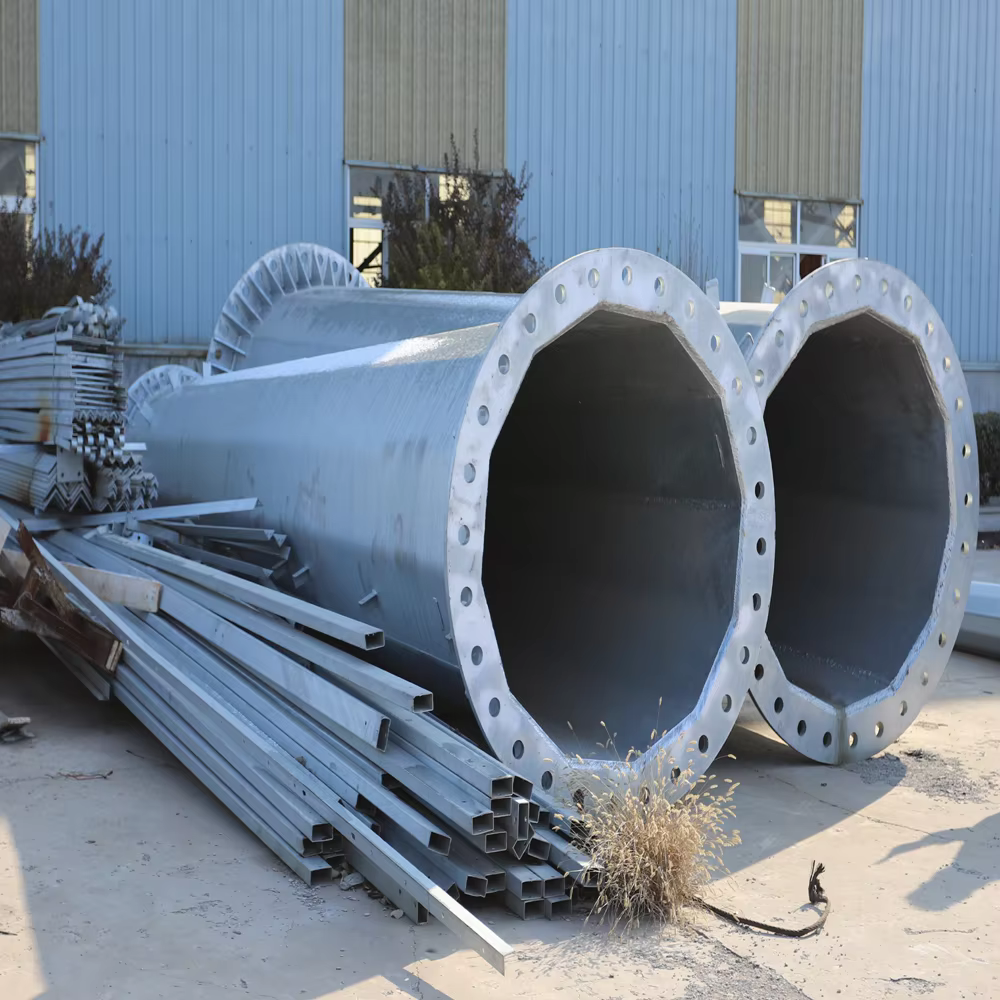

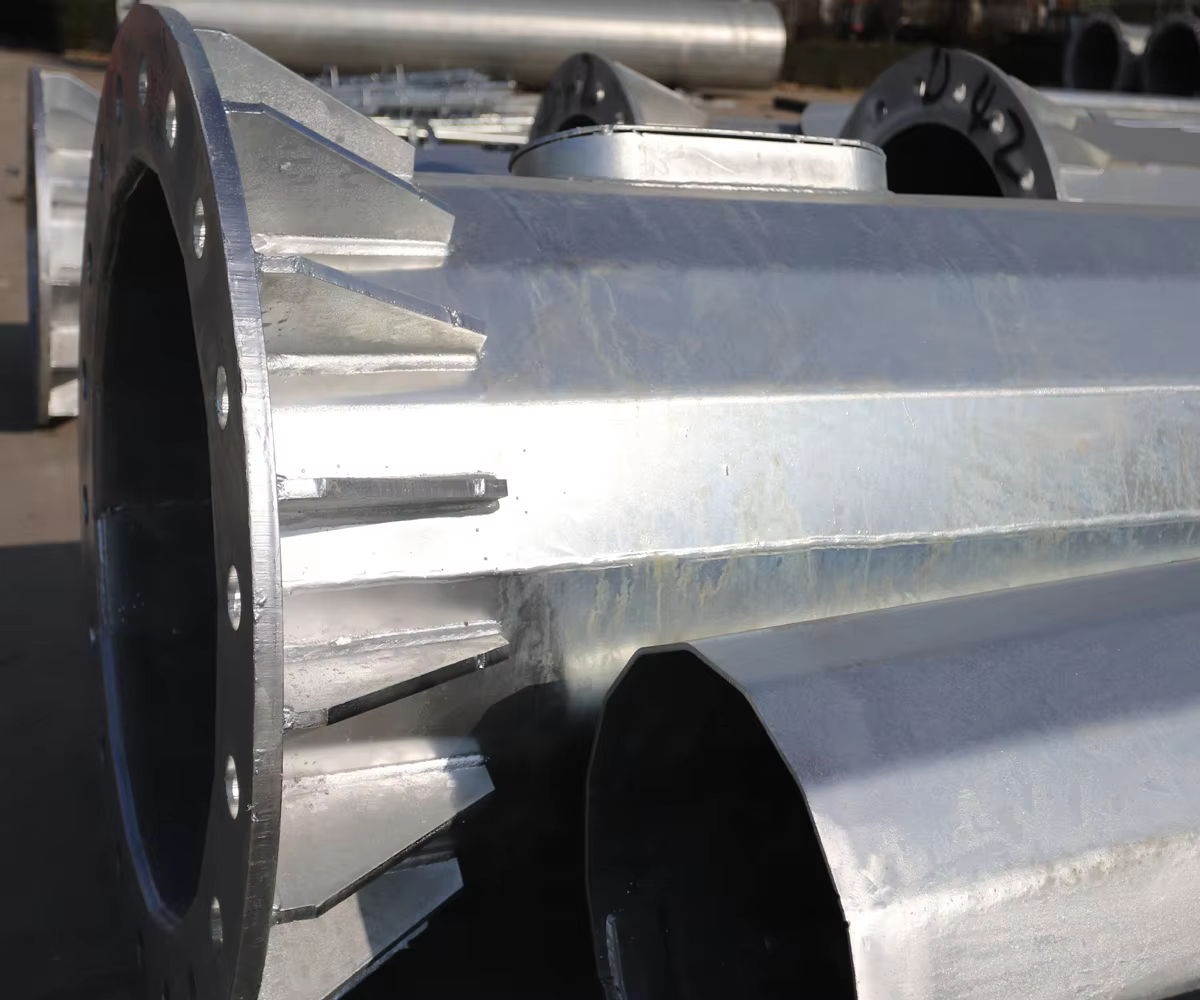

Joint with insert mode, flange mode. |
Production Capacity |
70,000tons/year |

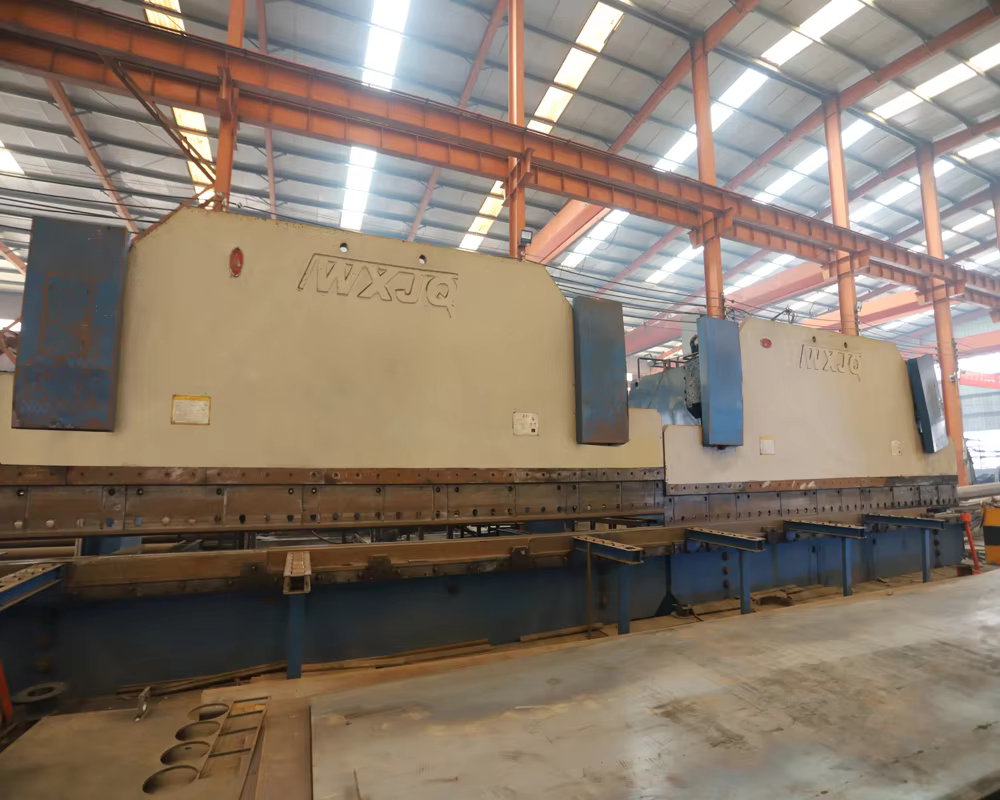

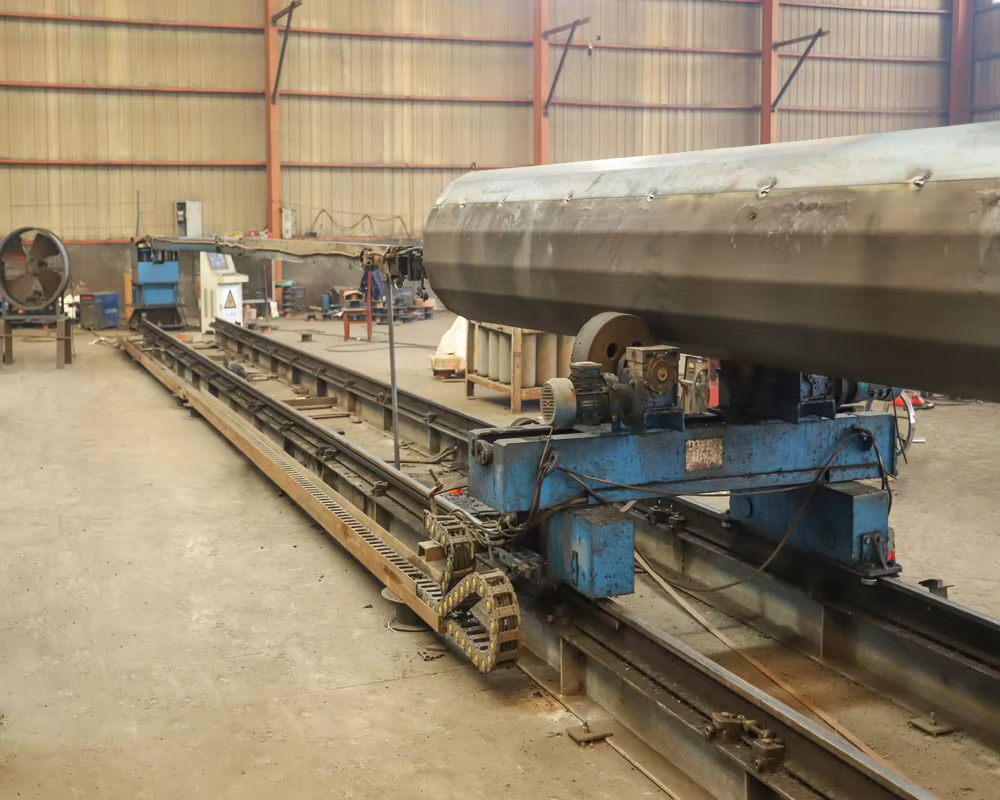

CNC submerged arc production line

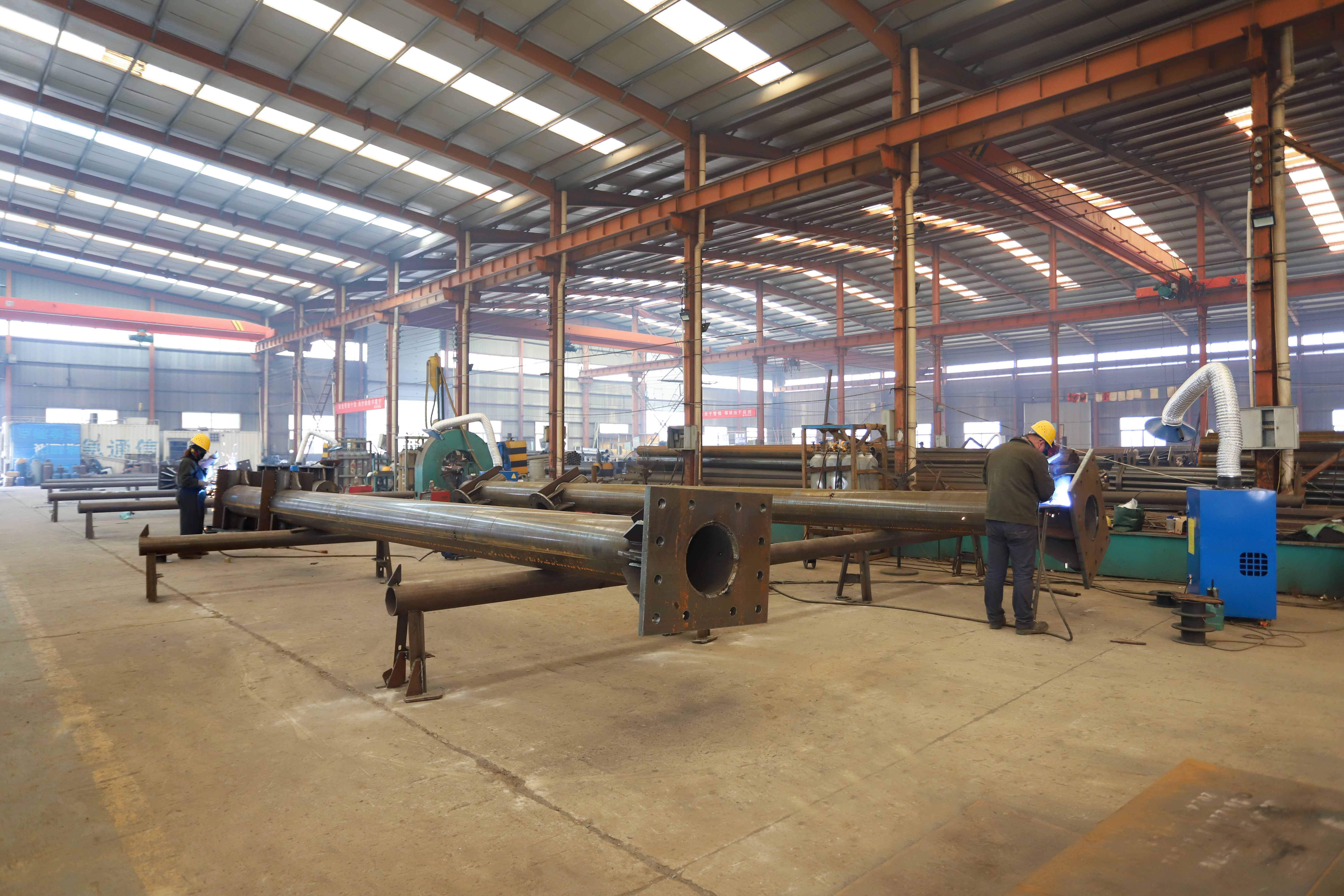

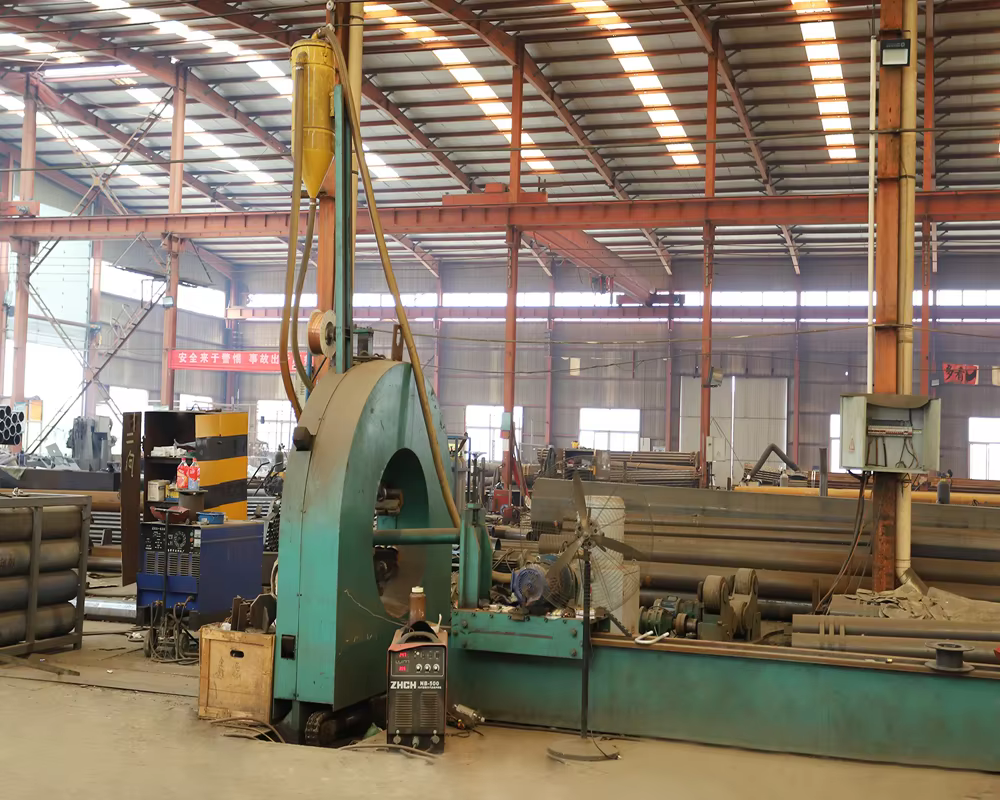

Single tube welding longitudinal-seam machine

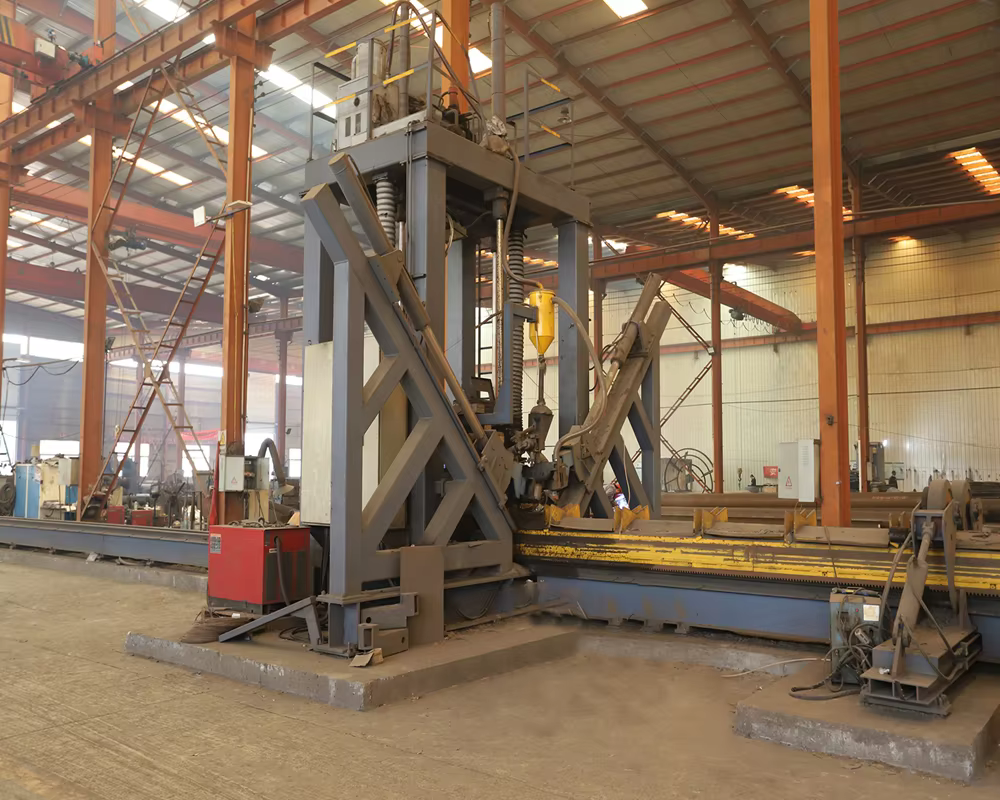

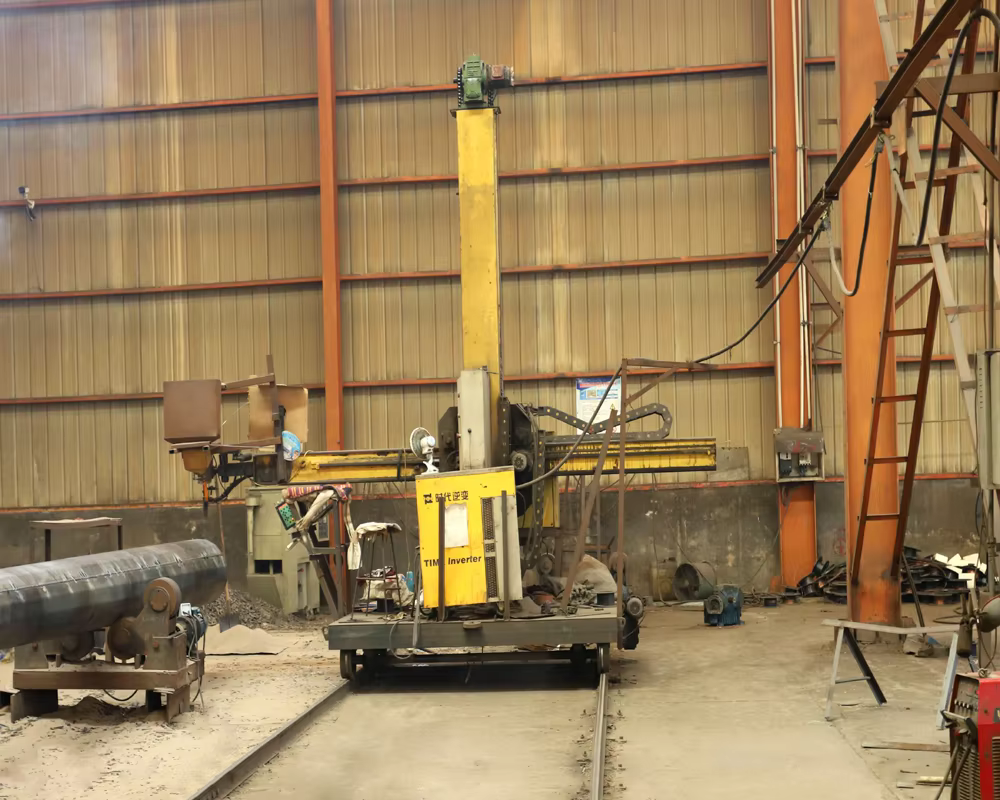

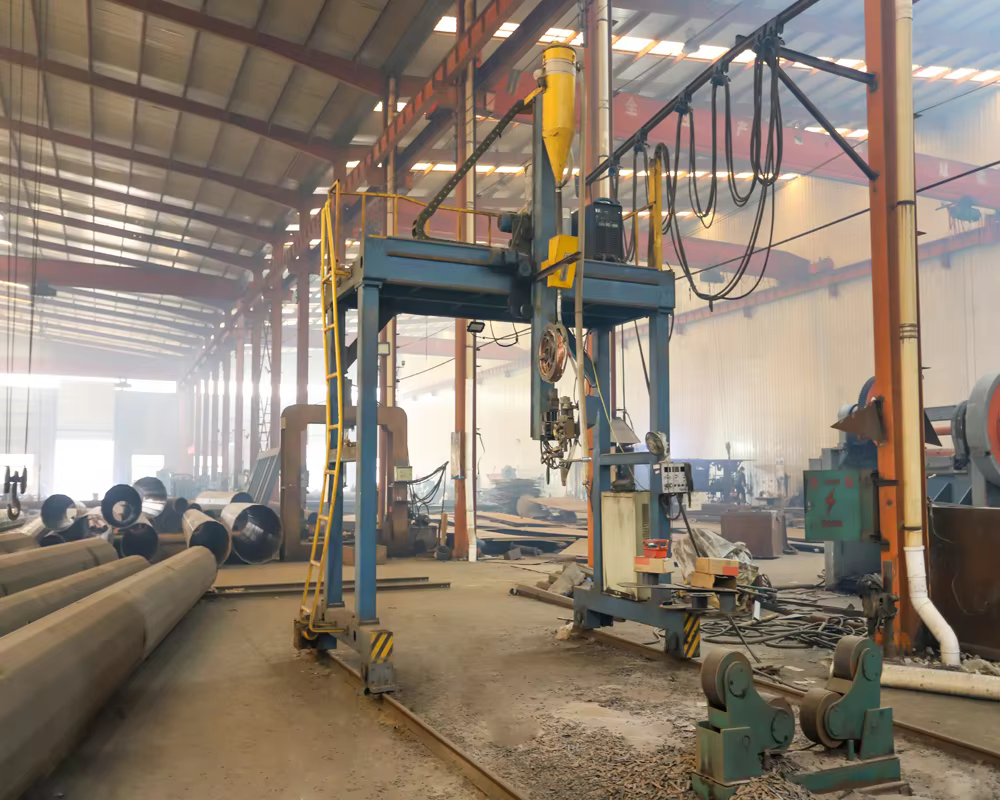

Automatic submerged arc gantry welding machine

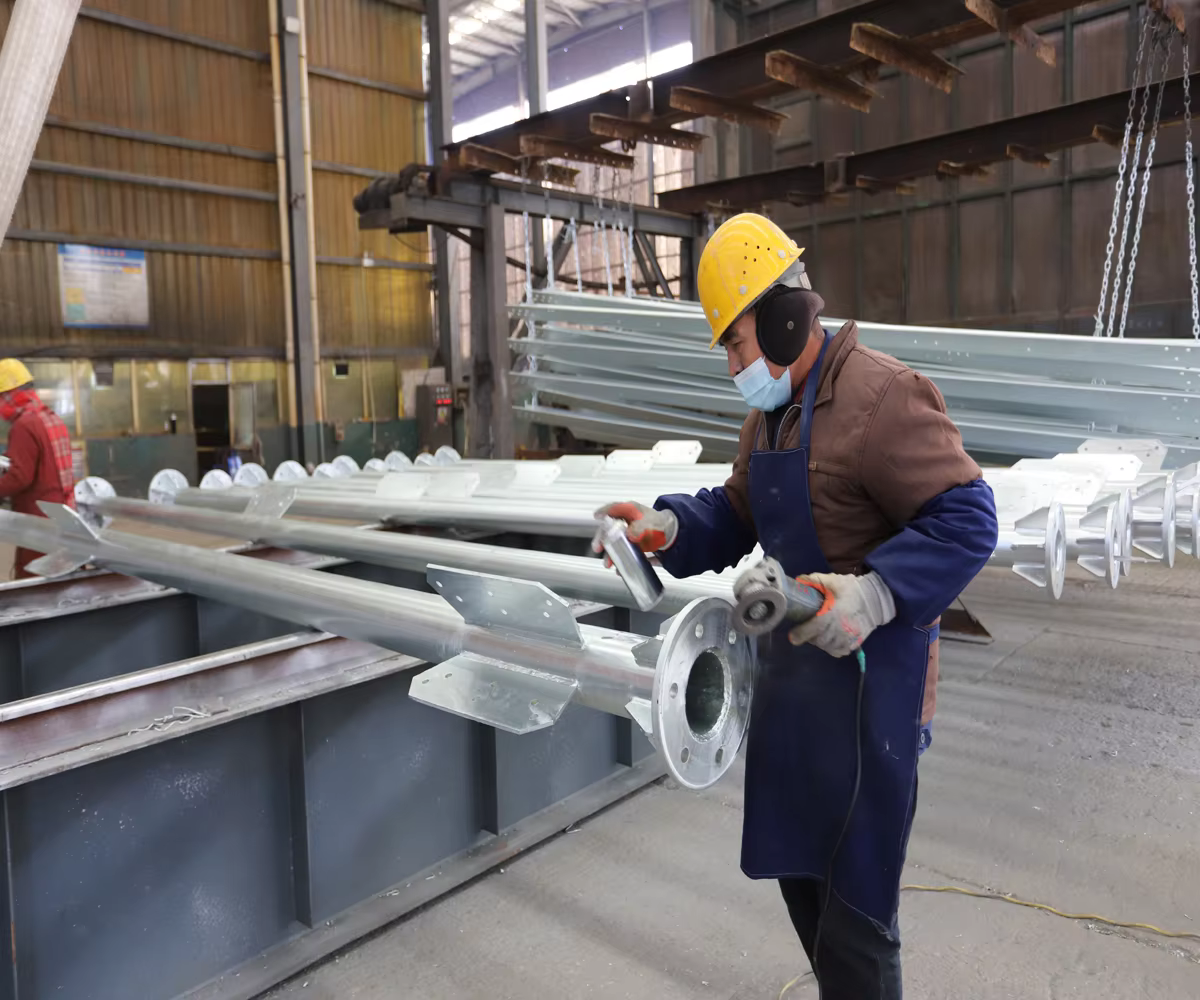

Production quality inspection

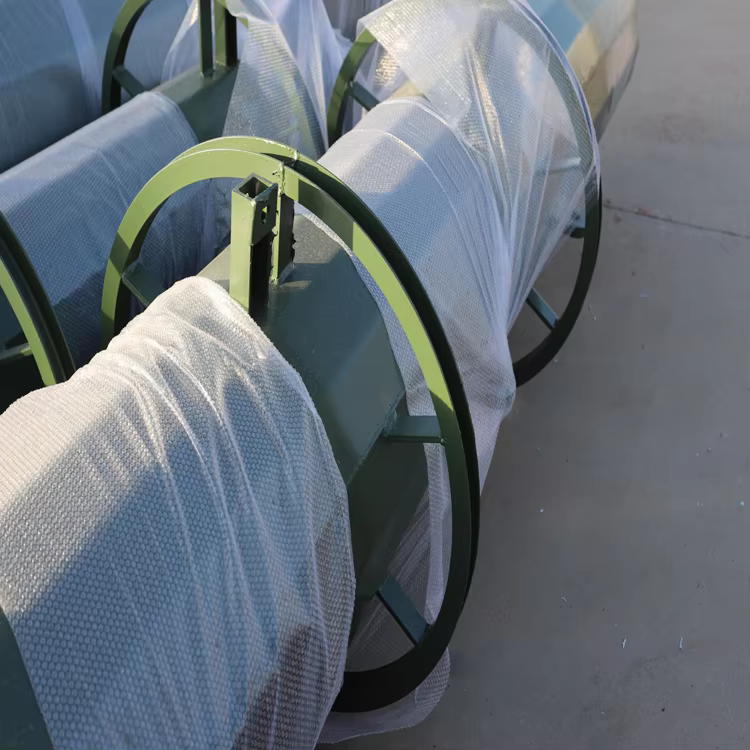

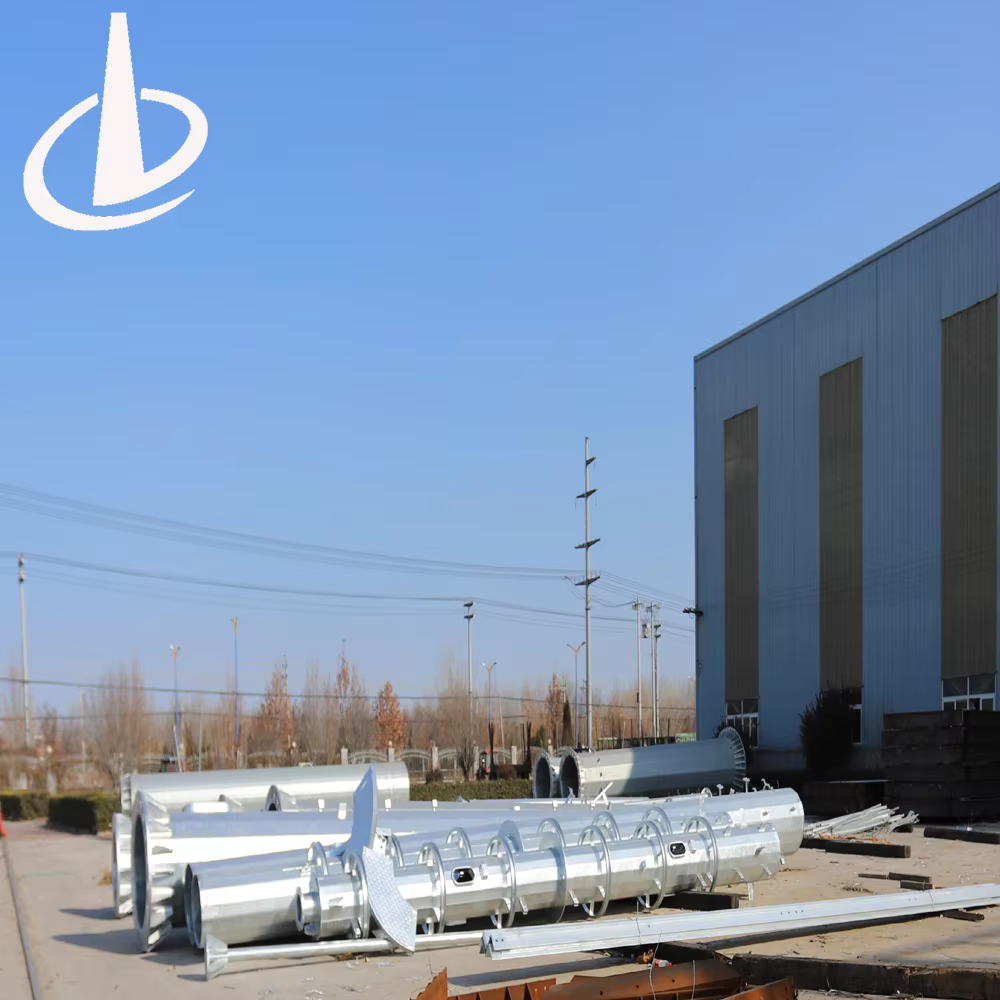

Packaging Details:Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port .
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or client's requirements.
our serviceHi dear customers
For the safety is so important ,when selecting the
Products, need to make sure the tower design are safe,performance proper,installation fit to the location ,trouble free, operation and maintenance are the responsibilities of system designer and user. We differentiate our offering with high quality but cost effective solutions for the Telecommunication and power Transmission sector.
From quote to delivery , we can give you detail support.
1.Selecting most suitable and cheapest tower type.
2.Support CAD,Daoheng drawing.
3.The raw materials are guaranteed, from big and famous steel mills, and have quality certificate.
4. Produce exactly according to the design file.
5.Professional packing and delivery.
6.Installation Guidance support.
Xinyuan iron tower group which established in 1994, is one leading manufacture in the telecommunication tower,transmission tower and other types of steel towers. The group includes two main factory plants, of which the east plant covers an area of 60,000 square meters is mainly the production workshop of the iron tower, with an annual production capacity of more than 70,000 tons; The west plant covers an area of 60000 square meters mainly for the galvanizing workshop, divided into three phases of construction, a total investment of 720 million yuan, galvanizing workshop using advanced, environmentally friendly galvanizing equipment construction, equipped with sewage treatment and reuse, waste acid treatment, zinc smoke treatment and acid fog treatment equipment. Designed annual production capacity of 300,000 tons; The old factory covers an area of 30,000 square meters and mainly produces communication computer rooms with an annual production capacity of more than 4,000. Engineering construction, maintenance capacity of more than 16,000 base stations, the existing staff of 695 people. The group ,specializing in the design, manufacturing, and installation of high-quality iron towers, we ensure reliable and efficient support structures for various telecommunication networks and transmission line. With a commitment to innovation and engineering excellence, our products not only meet but exceed international standards. Backed by a team of experienced professionals and state-of-the-art technology, we strive to provide customized solutions that cater to the unique requirements of our clients. Whether it's for mobile communication, broadcasting, or other wireless applications, our iron towers stand as symbols of durability and technological prowess.
1. Is the tower's structure unitary? No, we can design and produce it as customer's request.
2. Manufacturer or trade company? We are manufacturer and have own factory, and welcome to visit our factory.
3.what can you buy from us?
Telecommunication tower,Transmission tower,Mono pole tower,Lightning tower,Training Tower,observation tower, decorative tower，training tower，wind tower，bionic tower，sightseeing tower，TV tower，5G smart pole and so on.
4. How long is your delivery time? Goods will be shipped within 10 to 30 days after payment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

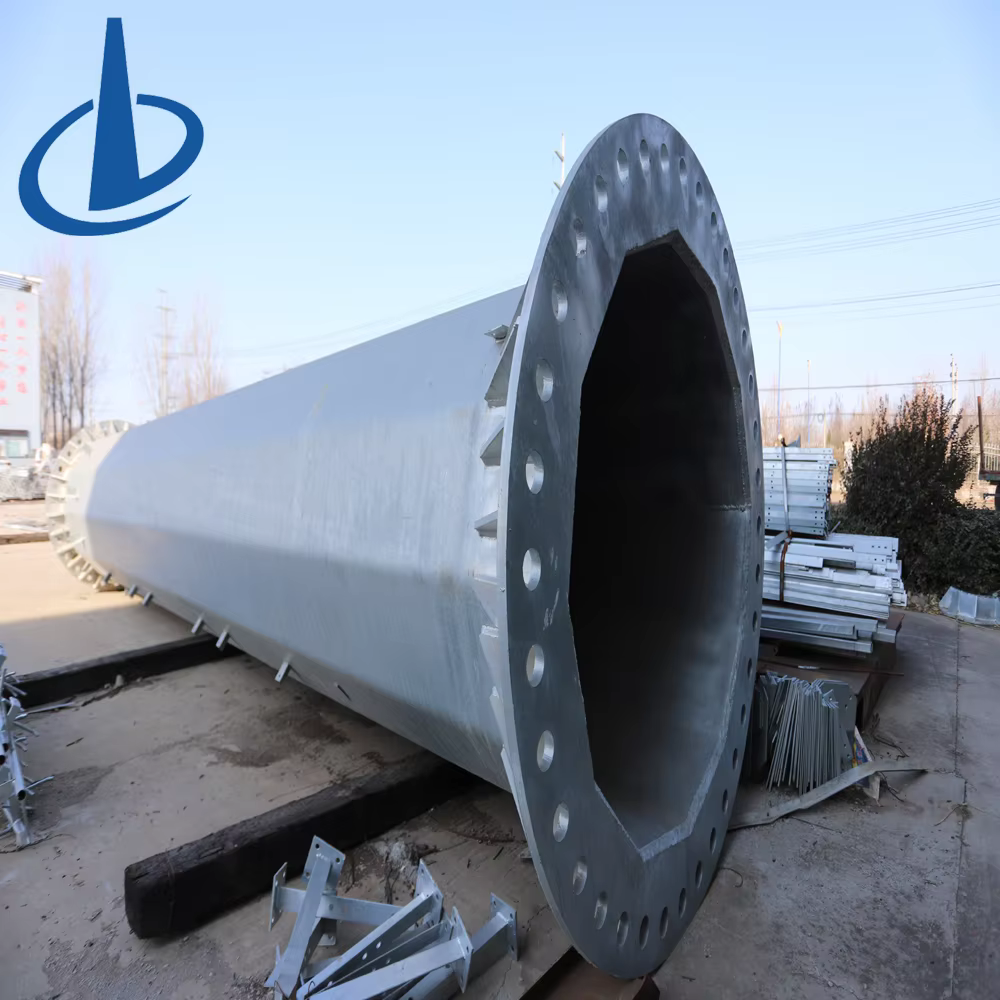

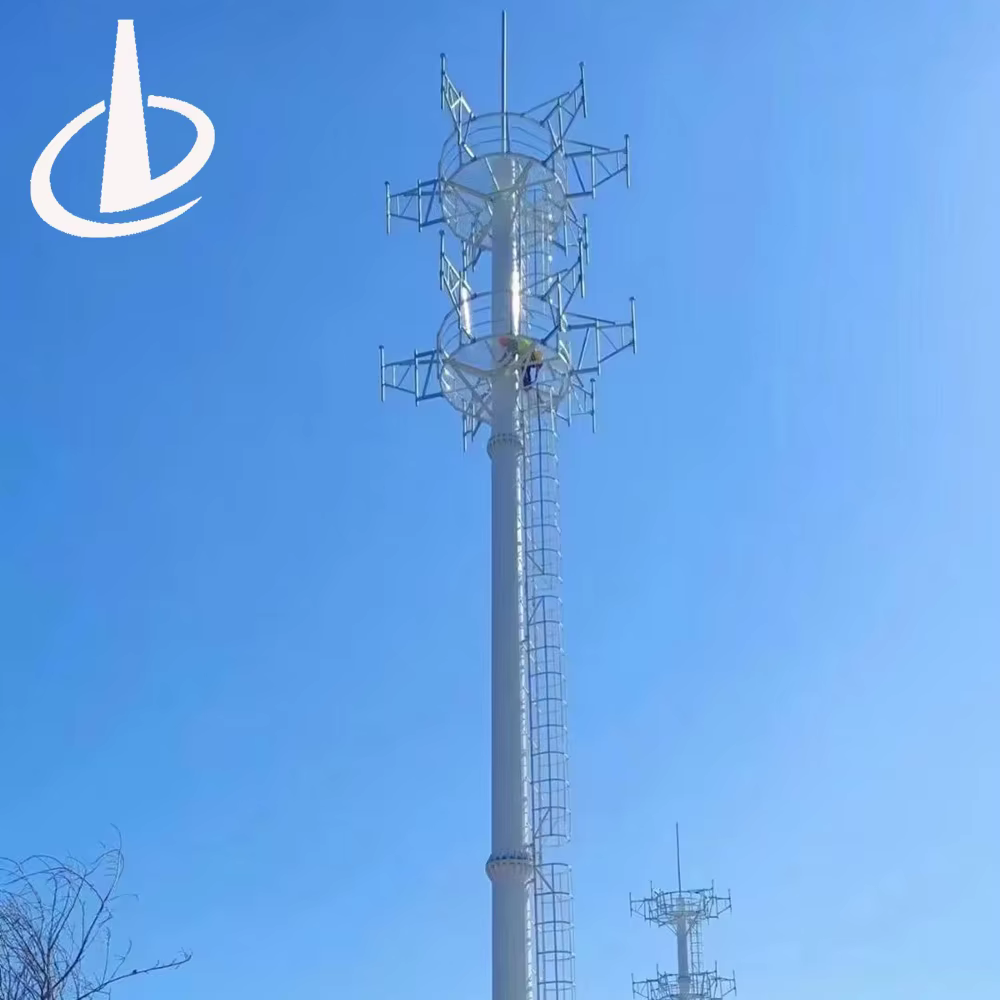

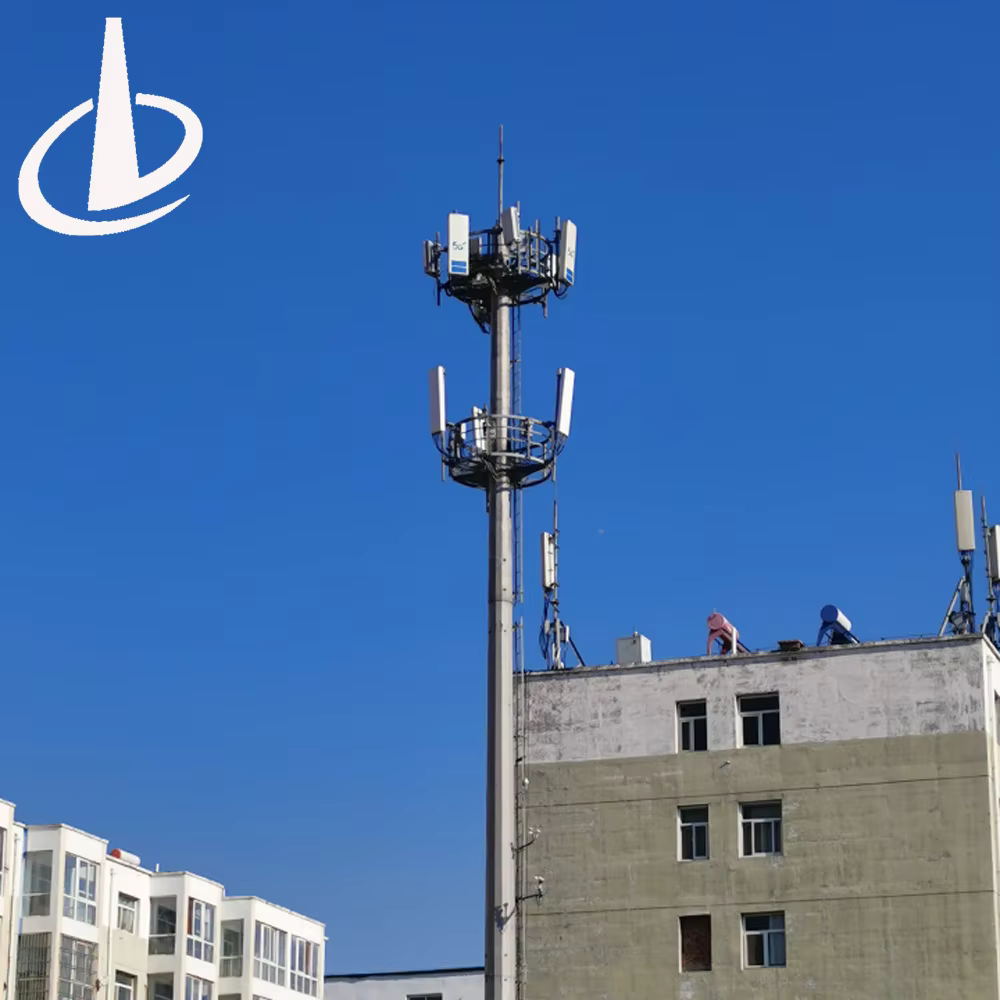

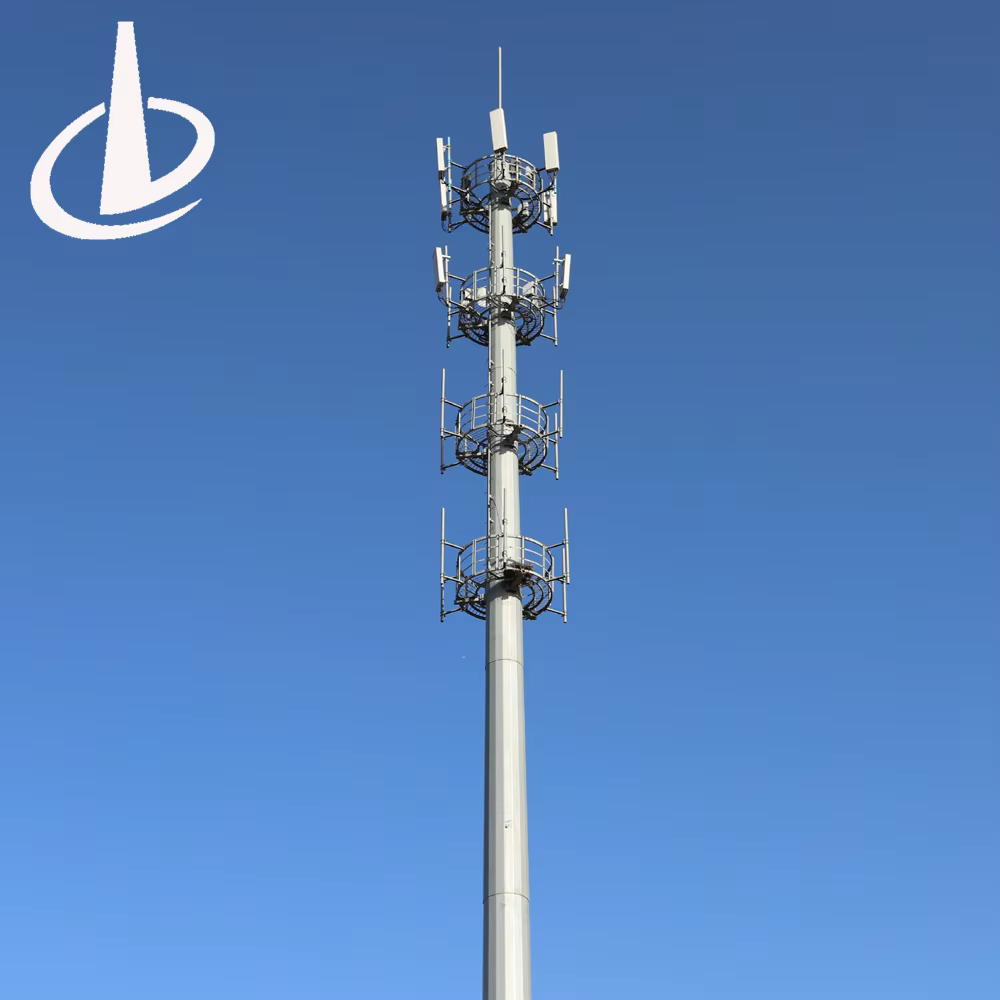

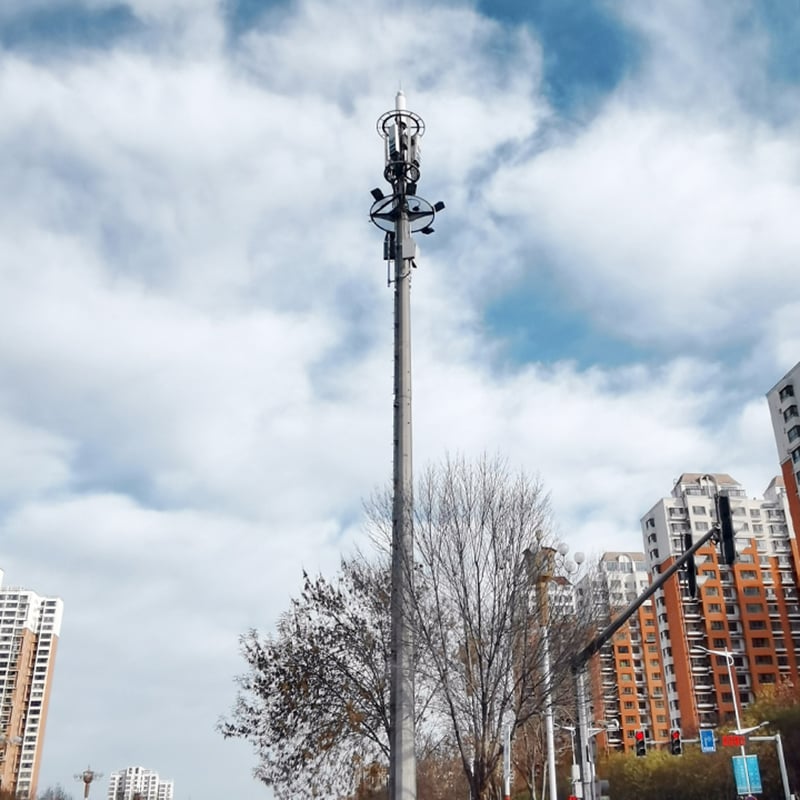

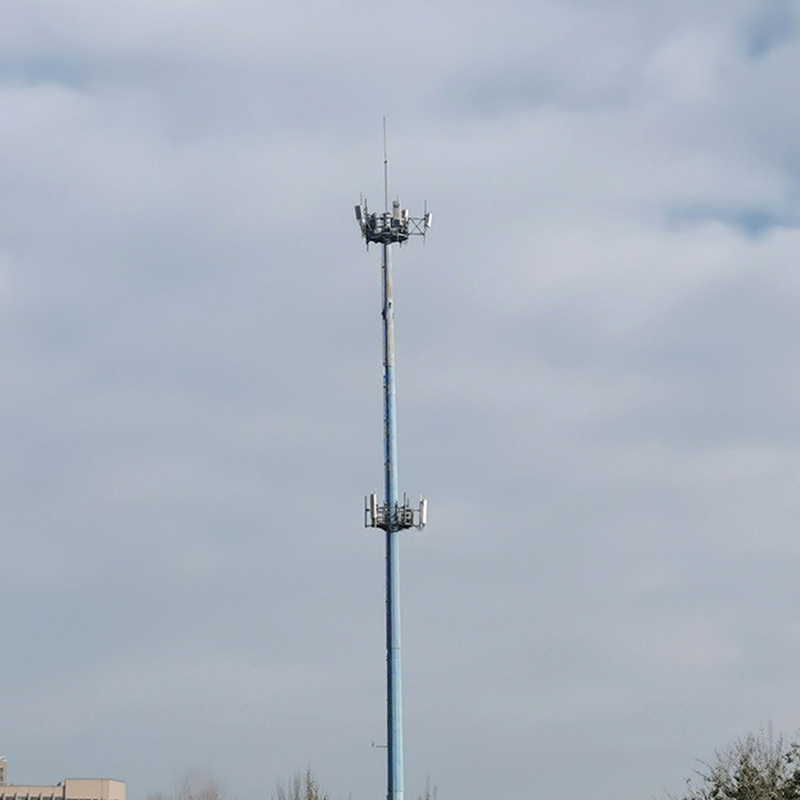

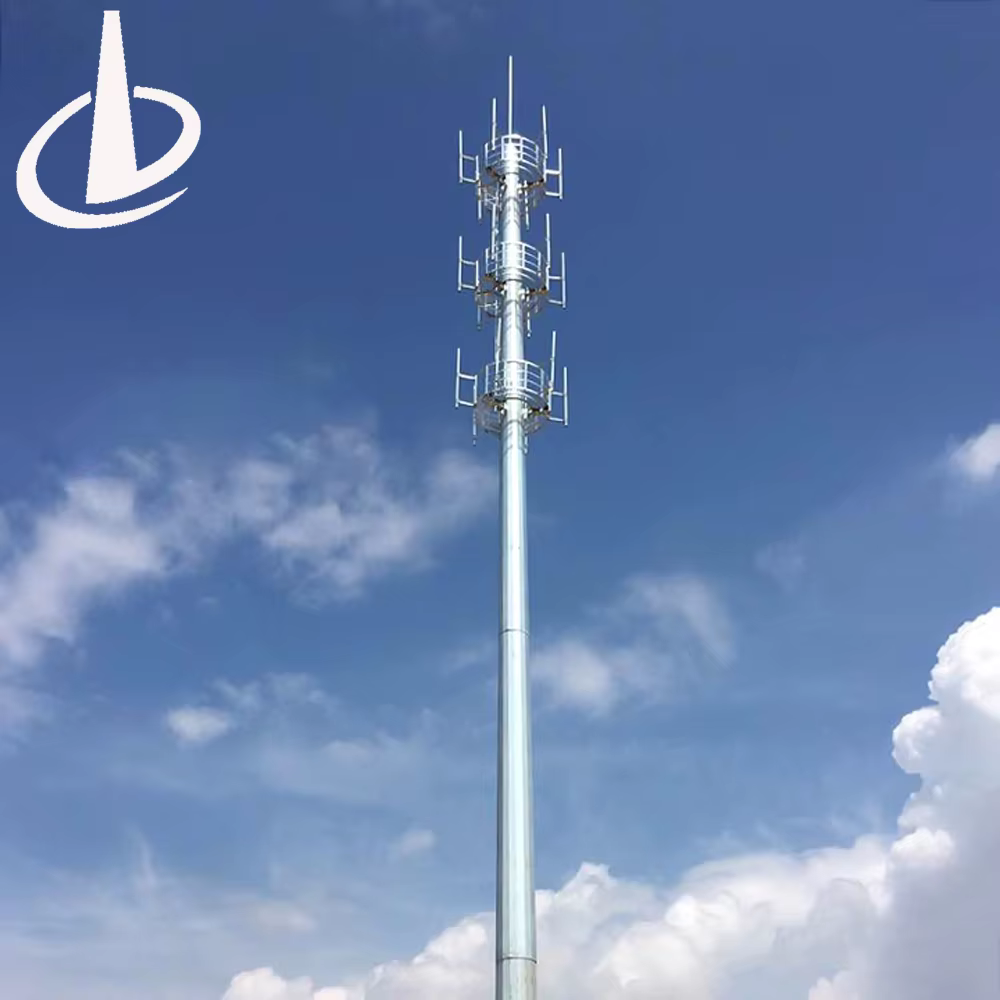

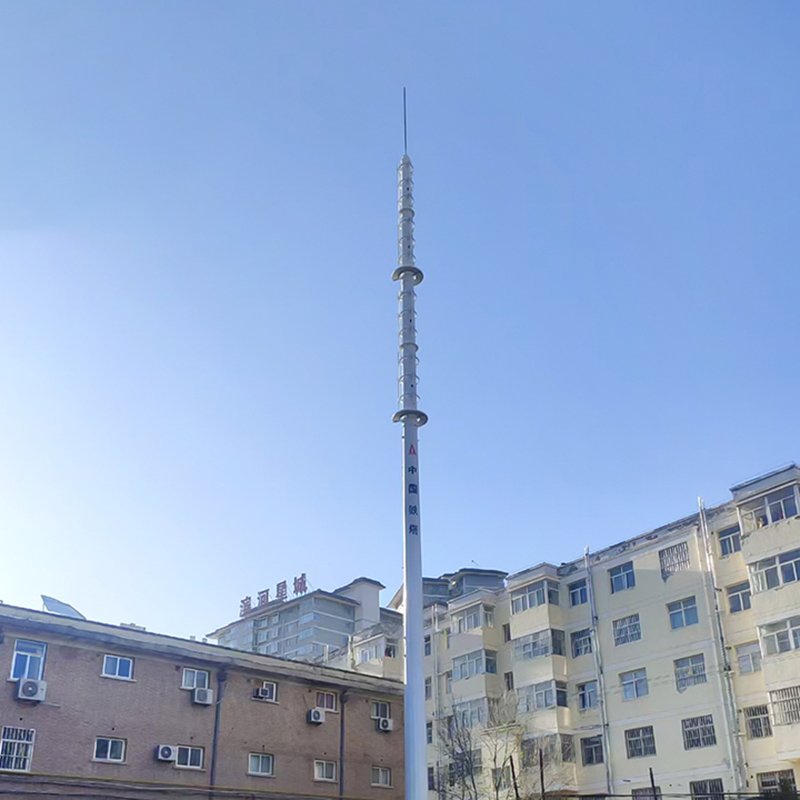

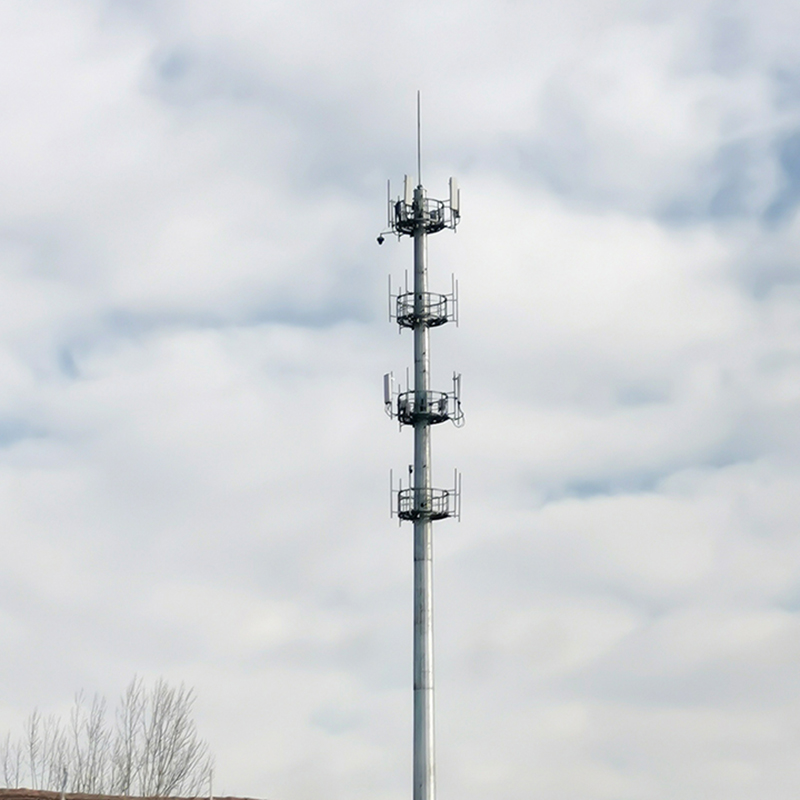

A mono pole is one of the most popular structures in the wireless communication industry. usually the height of the mono pole from 12~60 meters.
Advantage: Footprint is small, install construction is fast , relocation and reuse is also very convenient.
Disadvantage: Cost is high,Production is more complex, shipping cost is high expenses Installation requirements are high,need a crane to help.
